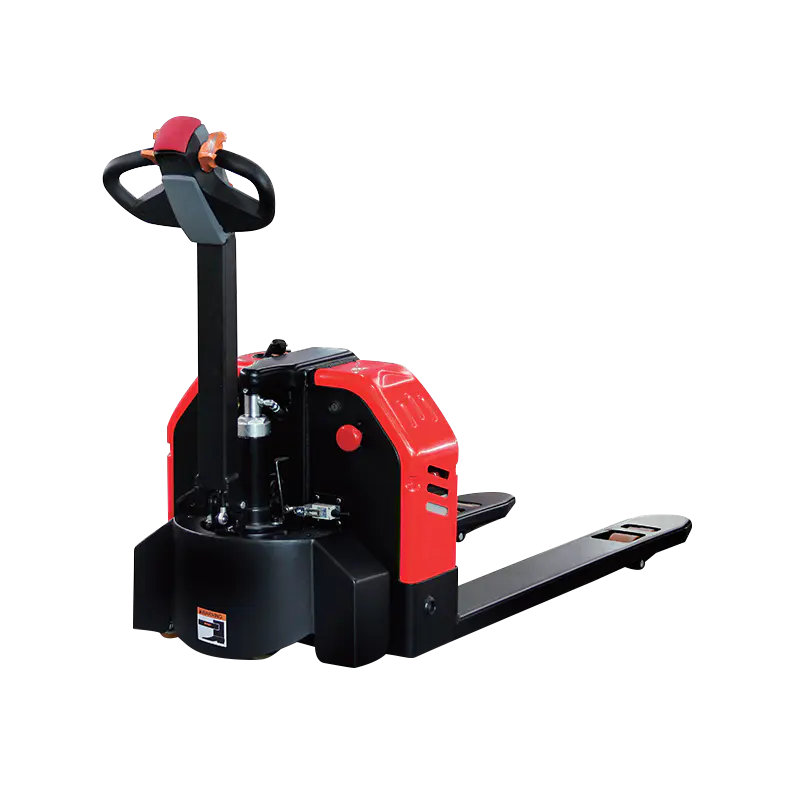

| Model |
|
CBD20X |
| Capacity |
Q(Kg) |
2000 |
| Load center |
C(mm) |
600 |
| Type of lifting |
|
Electric |
| Operating type |
|
Walkie |
| Material |
|
PU |
| Wheel base |
Y(mm) |
1230/1300 |
| Quantity of Driving/Balance/Bearing Wheel |
|
1x+2/4 |
| Bearing wheel size |
mm |
Ф80×70 |
| Driving wheel size |
mm |
Ф210×75 |
| Balance wheel size |
mm |
Ф75×46 |
| Min.fork height |
h13(mm) |
85 |
| Max.fork height |
mm |
200 |
| Max.lifting height |
h3(mm) |
115 |
| Fork outside width |
b5(mm) |
560/685 |
| Fork inside width |
b11(mm) |
240/365 |
| Fork length |
I(mm) |
1150/1220 |
| Single fork size |
e/s(mm) |
160/50 |
| Overall length |
L1(mm) |
1650/1720 |
| Overall width |
b1(mm) |
685 |
| Overall height |
H14(mm) |
1220 |
| Handle vertical height |
mm |
1220 |
| Min.turning radius |
Wa(mm) |
1385/1455 |
| Travel speed(laden/unladen) |
km/h |
4/5 |
| Lifting speed(laden/unladen) |
mm/s |
25/30 |
| Lowering speed(laden/unladen) |
mm/s |
30/20 |
| Fast/slow adjustment function |
|
Yes |
| Gradeability |
% |
≦4 |
| Driving mode |
|
DC |
| Drive motor |
V/Kw |
24V 0.75KW |
| Lift motor |
V/Kw |
24V 0.8KW |
| Battery capacity |
V/Ah |
2×12/80 |
| Charger |
V/A |
24V 12A |
| Battery weight |
kg |
24 |
| Net weight |
kg |
230 |
