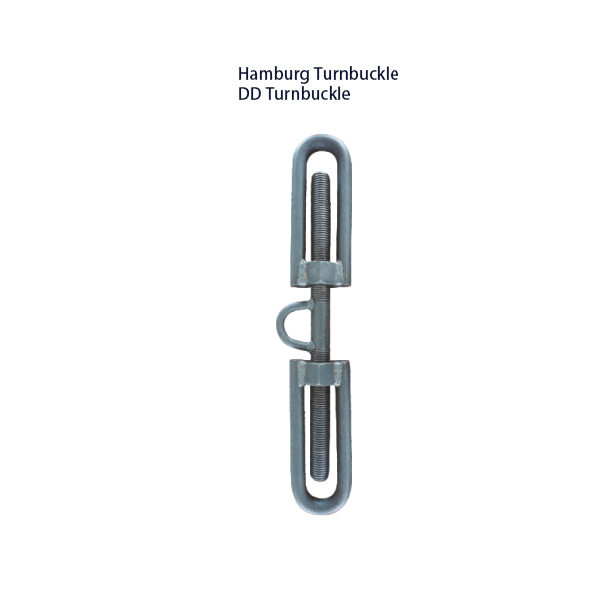

德标DD花兰
- 材质:玛钢、Q235
- 工艺:锻造工艺
- 表面处理:原色、电镀锌
- 规格: M6-M50
- 包装:麻袋/托盘
你也许喜欢
产品参数
| 规格 Size (mm) |
尺寸 Dimensions(mm) |
破断载荷 Breaking load(t) |
||||||||
| A | B | C | D | H | 1 | 2 | R1 | R2 | ||
| M24 | 400 | 75 | 35 | 210 | 22 | 16 | 12 | 15 | 20 | 13 |
| 75 | 35 | 210 | 36 | 18 | 12 | 15 | 20 | 18 | ||
| M24 | 500 | 75 | 35 | 260 | 22 | 16 | 12 | 15 | 20 | 13 |
| 75 | 35 | 260 | 36 | 18 | 12 | 15 | 20 | 18 | ||
| M27 | 400 | 75 | 35 | 210 | 33 | 20 | 12 | 17.5 | 21.5 | 20 |
| 75 | 35 | 210 | 42 | 20 | 12 | 17.5 | 21.5 | 25 | ||
| M27 | 500 | 75 | 35 | 260 | 33 | 20 | 12 | 17.5 | 21.5 | 20 |
| 75 | 35 | 260 | 42 | 20 | 12 | 17.5 | 21.5 | 25 | ||
| M3O | 400 | 75 | 35 | 210 | – | – | 12 | 17.5 | 22.5 | – |
| 75 | 35 | 210 | 45 | 22 | 12 | 17.5 | 25.5 | 25 | ||
| M30 | 500 | 75 | 35 | 260 | – | – | 12 | 17.5 | 25.5 | – |
| 75 | 35 | 260 | 45 | 22 | 12 | 17.5 | 25.5 | 25 | ||
| M38 | 480 | 80 | 35 | 255 | 40 | 25 | 12 | 20 | 28 | 30 |
| 80 | 35 | – | – | – | – | – | – | – | ||
